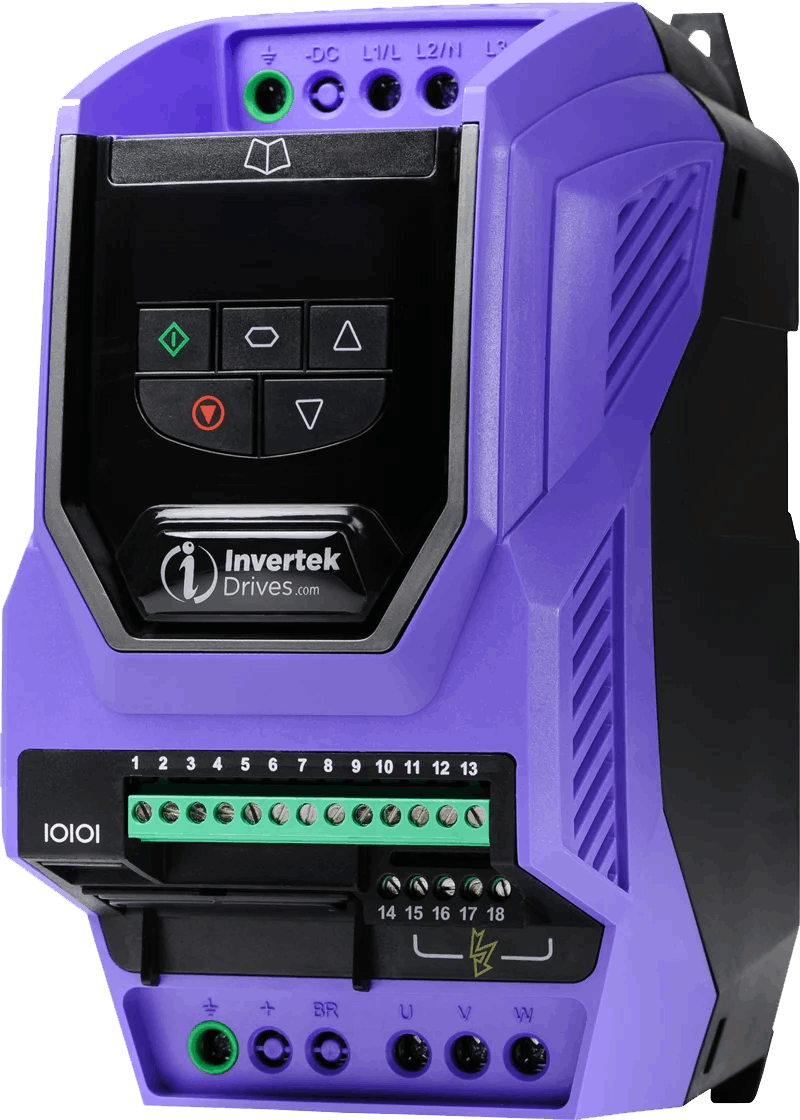

ODV-3-220105-1F12-MN

Pump Control Features:-
User configurable pump load monitoring with auto tune function. Adjustable Pump Cleaning Cycle operation. Automatic pump stir function. Control of fixed speed assist pumps via optional cascade control module. Control of Duty, Assist and Standby variable speed pumps via internal Master – Slave network.

Fan & HVAC Control Features:-
Fire Mode: Selectable direction. Selectable speed reference
Broken Belt Detection: Under load monitoring with auto tune configuration
PID Control: Internal PID control with feedback display

Overload: 110% x 60 seconds
Speed Control Range: 0-120Hz
Braking: None

Integrated OLED Keypad, 3 Digital Inputs, 2 Analogue/Digital Inputs, 2 Digital Outputs, 2 Relay Contact sets, terminals for STO (Safe Torque Off) to SIL2. RJ45 socket for Modbus or BACnet communications over RS485.
